WEIGHT
5.2X lighter than a 100Ah lead-acid battery
CONCEPTION
100%
Canadian
PROFITABILITY
2.6X more economical (15-year actual cost of ownership)
KEY FEATURES
1 COMMUNICATION PORT
XLR (compatible with Volthium accessories)
DISCHARGE CURRENT
Continuous 100 A Peak 200 A (30S)
SIZE
260 X 168 X 214 mm 10.24 X 6.62 X 8.43 in
WEIGHT
33 LBS
15 KG
LCD DISPLAY
MANAGED BY BMS
BMS
Reserved room, easy to access
10 YEARS
LIMITED
WARRANTY
COLD CHARGING PROTECTION
![](https://volthium.com/wp-content/uploads/2024/05/12V130Ahtop_Detoure.png)
DESCRIPTION
Our 12V 130Ah SELF-HEATING battery is the ideal battery for 4 season use. More and more Canadians are heading out in the cold season to discover the regions around us, travelling in smaller, lighter vehicles. Our 12V 130Ah self-heating battery in group 24 format, and weighing only 33 pounds is perfect to satisfy their needs! This LifePO4 130AH battery incorporates an internal self-heating system and an even more advanced BMS that will never make you fear our Quebec winters again. By adding our Smart Bridge to your battery and thanks to the Volthium app, you will be able to follow the evolution of the internal temperature of the battery in addition to having access to a multitude of additional information. When connected to a power source, our 12V 130Ah SELF-HEATING will first use the energy to create an internal heat of 11 degrees and then start charging. Thanks to the thermal cage that surrounds the cells, the internal temperature drops from -20 to 11 °C in just 2 hours. Whether you’re a winter camping enthusiast or you own a self-sufficient boat or cottage, the 12V 130AH LIFEPO4 – SELF-HEATING has been designed to meet all your needs!
Never has a lithium battery given such a staggering performance as that offered by our range of products. Profitability is assured for at least 10 years, and certainly more!

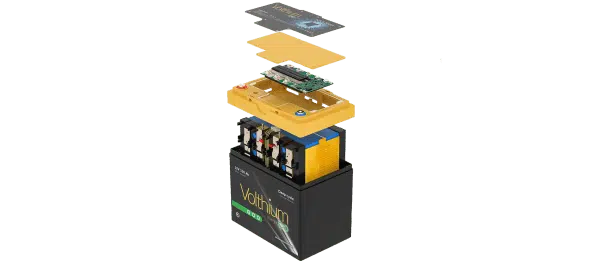

The BMS is easily accessible to ensure an extended life for the entire battery bank. This makes the battery easily repairable in the event of accidental misuse, and thus avoids having to replace the entire battery bank for a single damaged battery.
Access to the BMS also allows for the addition and customization of additional settings over the years.
Our BMS technology, powered by TexasInstrument, is specifically designed for the harshness of the Canadian environment. Paired with our Grade A+ Cells, we ensure that you have the best battery in North America in your hands.
Easy and quick to install, thanks to their 2X LIGHTER WEIGHT than a conventional battery, our lithium batteries offer you a shorter charging time and an energy capacity that does not run out of steam over the years.
At Volthium, we make it our mission to bring together the best parts offered from each industry in order to bring them together in a single battery! Cartridges, BMS, assembly engineering, everything is there.
The aviation-grade XLR connector allows you to add the Volthium Bluetooth transmitter, which can support the management of 4 batteries when the transmitter is paired with the Communication HUB. Not only is this LiFePO4 battery vibration-resistant, but it has a higher discharge range than the competition. Indeed, this battery can be discharged down to -25 degrees, instead of -20 degrees for competition. It can be recharged down to -40 degrees. This innovation is possible due to the fact that the cells in Volthium batteries come from the automotive industry.
![](https://volthium.com/wp-content/uploads/2024/04/side_view_thetriointransit-scaled.jpg)
![](https://volthium.com/wp-content/uploads/2024/01/PortDaniel-4-scaled.jpg)
![](https://volthium.com/wp-content/uploads/2024/01/image_1280x1280px_RV_4.jpg)
INCLUDED
![](https://volthium.com/wp-content/uploads/2024/04/Batterie-12-V-130-Ah_Detoure-01_Rectangle.png)

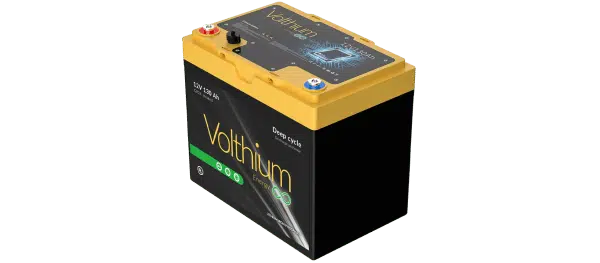

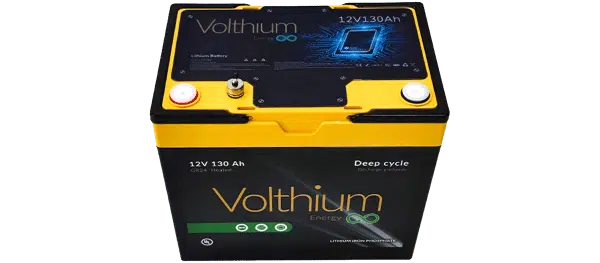

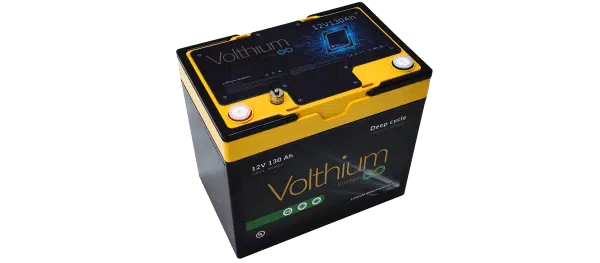

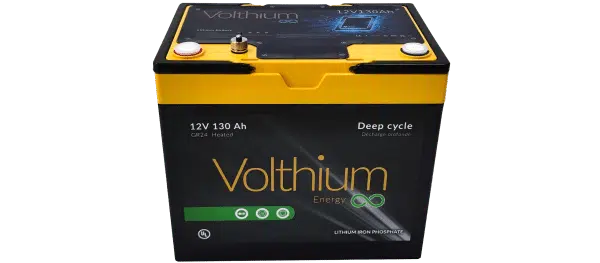

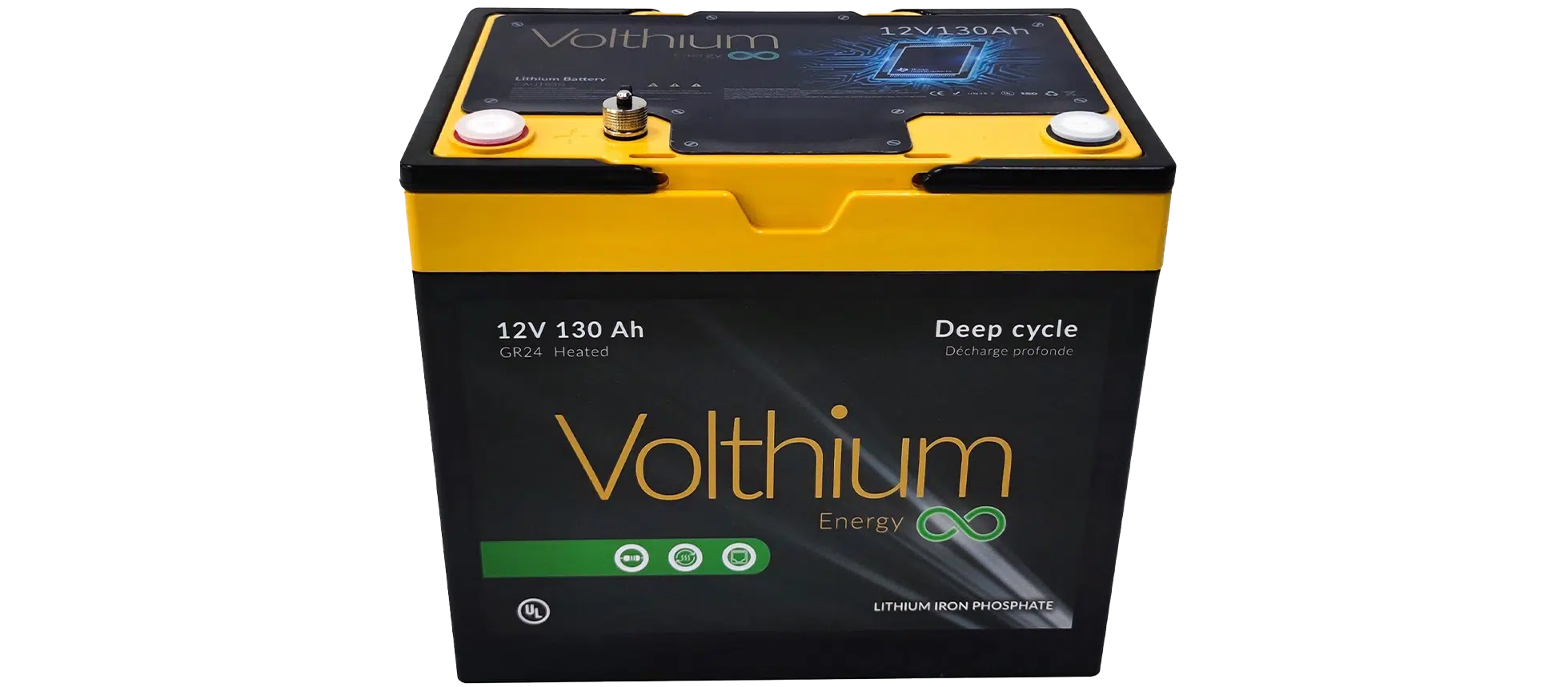

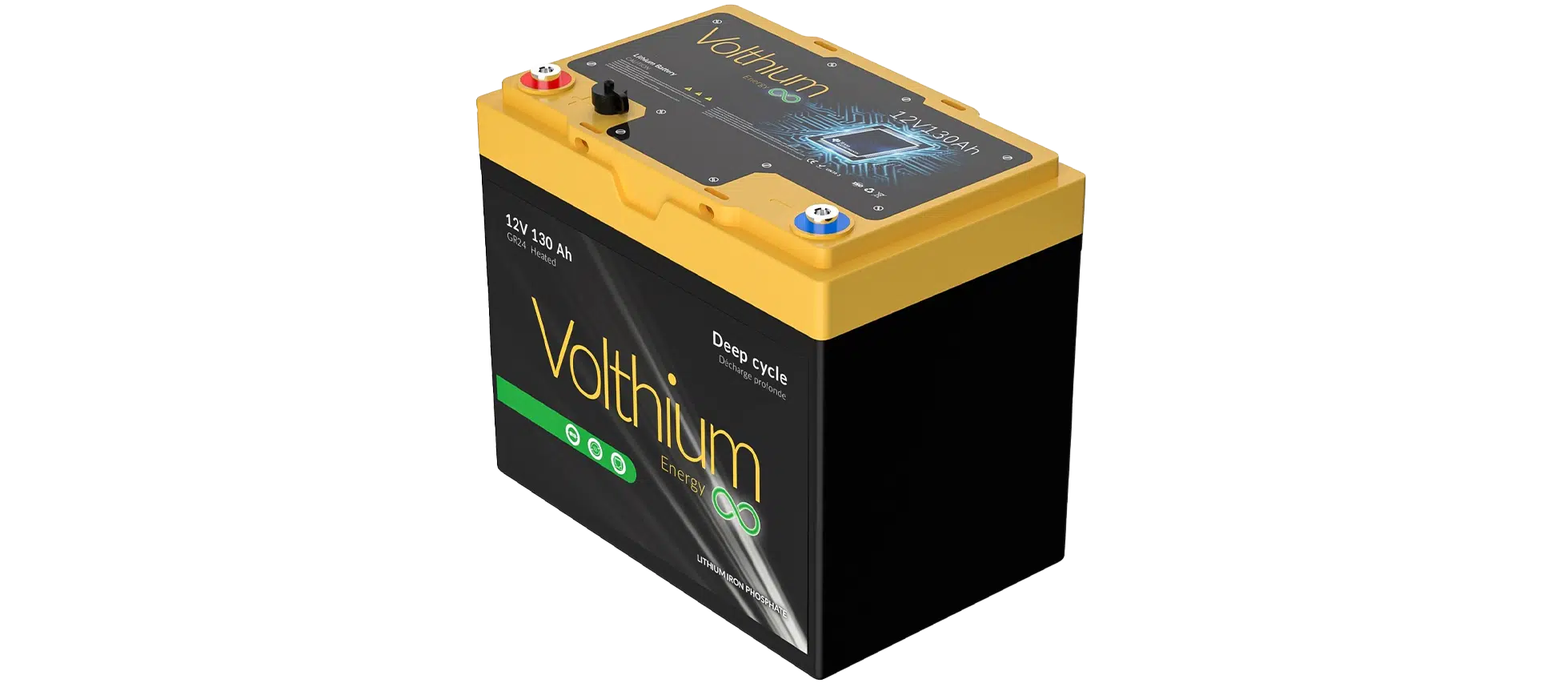

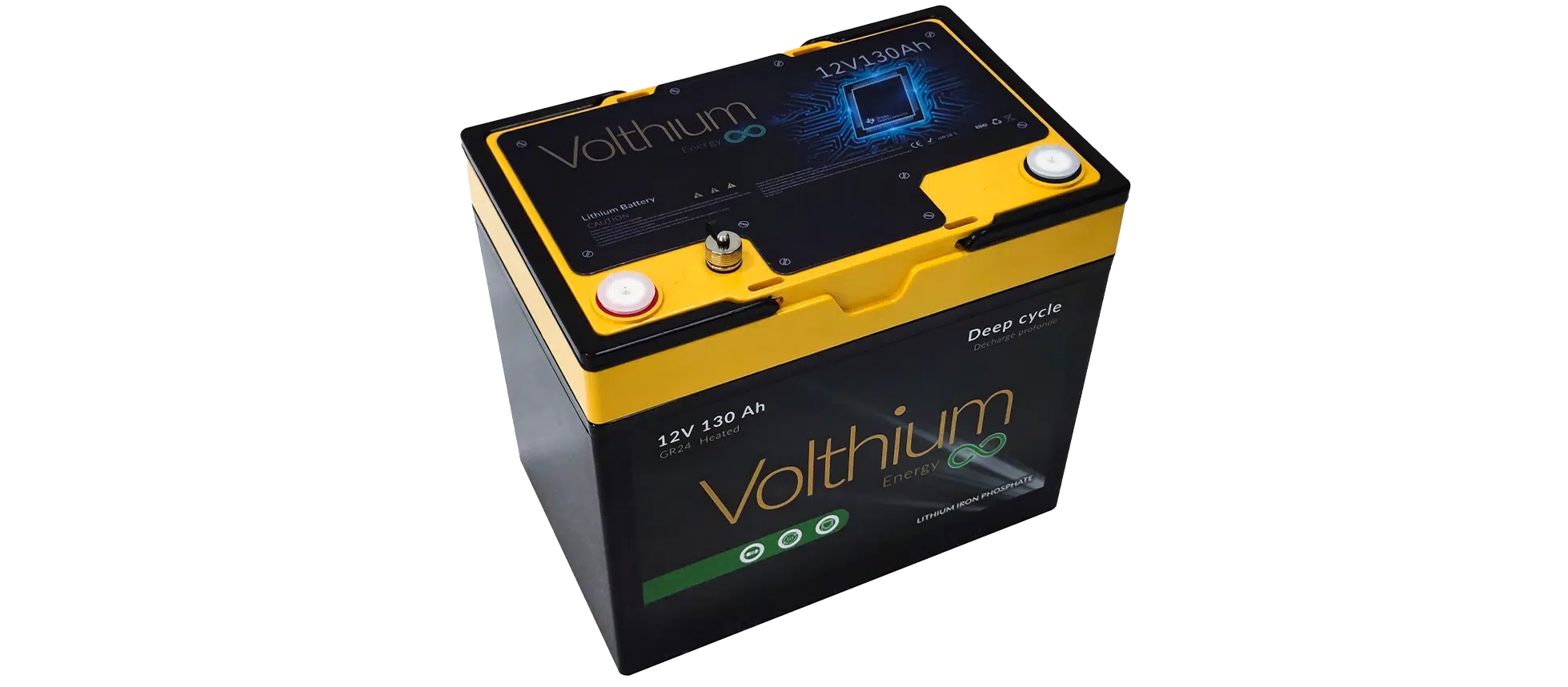

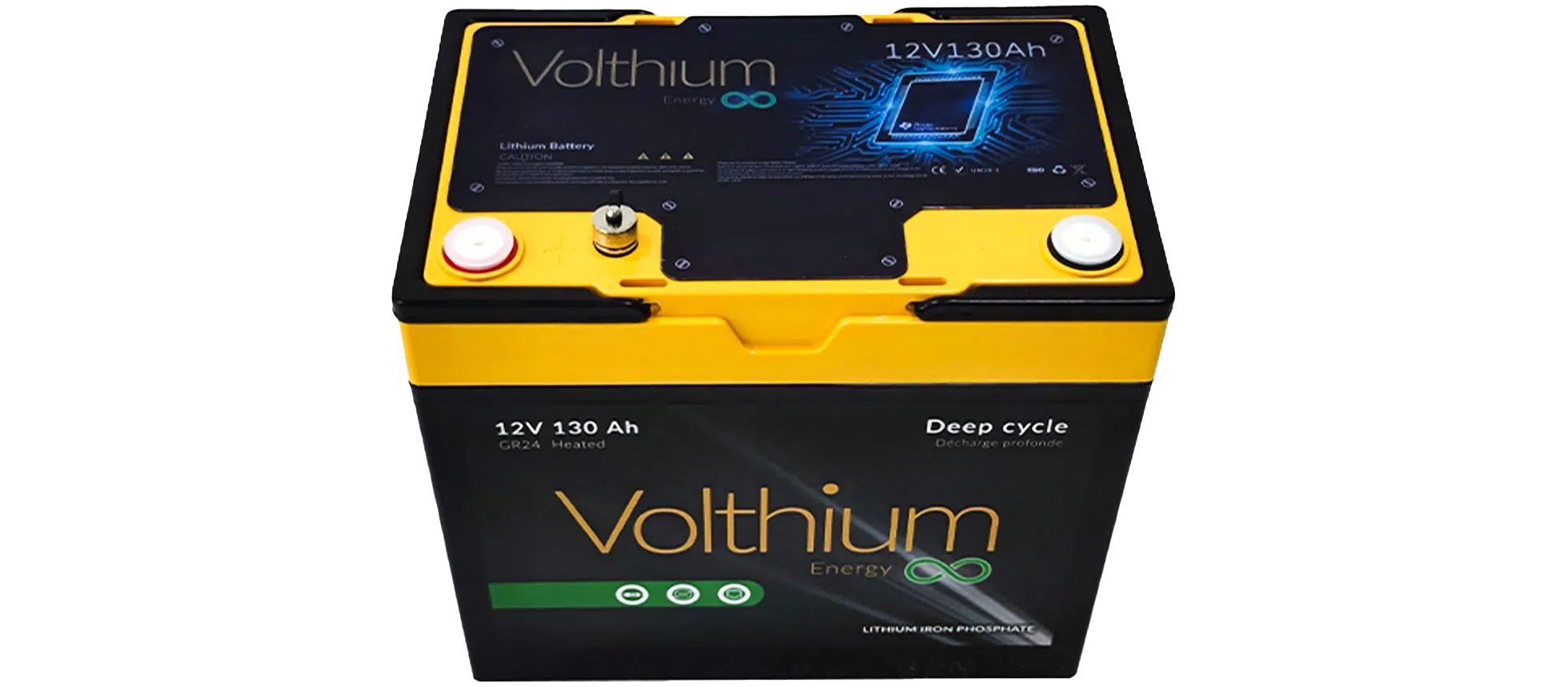

12V 130Ah battery
Lithium batteries are one of the most common energy storage technologies today, widely used in a variety of applications, from electric and recreational cars (RVs), water vehicles, solar storage banks, medical and industrial applications. The basic principle of their operation is the mobility of lithium ions between the two electrodes: the anode (negative electrode) and the cathode (positive electrode), via an electrolyte.
- Composition: Lithium batteries are typically made up of three main components: the anode, cathode, and electrolyte. The anode is usually composed of carbon, most often in the form of graphite. The cathode of LifePO4 batteries such as the ones we manufacture is made of lithium iron phosphate, iron phosphate promotes a strong molecular bond, which withstands extreme load conditions, extends service life, and maintains chemical integrity over many cycles. For other lithium batteries, the cathode is usually composed of a lithium metal compound, such as lithium cobalt, lithiated manganese, lithium nickel, or a mixture of these elements. The electrolyte is a chemical substance that allows lithium ions to pass between the anode and the cathode. At Volthium, we believe that LifePO4 batteries are the best alternative for different reasons.
- During charging: When the battery is charged, i.e. when the current is applied, the lithium ions move from the cathode to the anode via the electrolyte. During this process, lithium ions are “inserted” into the anode structure, a process called intercalation.
- During discharge: When the battery is used to power a device, i.e., when it is discharged, lithium ions move from the anode to the cathode, a process that releases energy. The mobility of lithium ions from the anode to the cathode is what generates the energy needed to power the device.
- Capacity and durability: The capacity of a lithium battery is determined by the amount of lithium it can store, which in turn determines how much energy it can provide. However, it is normal for the capacity of a battery to decrease over time, a phenomenon known as battery degradation. This is due to several factors, including temperature, overcharging and discharging, and general battery usage. However, thanks to the quality of our batteries and in particular our grade A+ cells, our batteries are guaranteed for 10 years and offer a lifespan of about 15 years.
LiFePO4 batteries, known for their lithium iron phosphate composition, are distinguished by their durability and superior energy capacity, especially in demanding applications such as recreational vehicles (RVs), trailers, and cottages. In Canada, where the search for reliable and sustainable energy solutions is constant, lithium LiFePO4 batteries are increasingly preferred over traditional lead-acid batteries, thanks to their long lifespan that can reach up to 3000 cycles at 100% discharge without significantly damaging the remaining capacity of the battery.
Volthium offers a range of 12V and 200Ah LiFePO4 batteries, equipped with grade A cells guaranteeing optimal efficiency. These batteries offer a shorter charging time and greater energy capacity, making the installation of a solar panel for energy storage even more cost-effective. Their high charge rate and stable voltage allow any electrical equipment to be efficiently powered, without the risk of overheating, thanks to the intrinsically safe lithium iron phosphate technology.
There are several types of lithium batteries, which are usually differentiated by the material used for the cathode (the positive electrode). The most common types are lithium cobalt (LiCoO2), lithium manganese (LiMn2O4), lithium nickel manganese cobalt (NMC), lithium nickel cobalt aluminum (NCA), and lithium iron phosphate (LiFePO4 or LFP) batteries. Volthium batteries are Iron Phosphate batteries known as LiFePO4 and LFP which are a kind of lithium-ion battery. They differ from other types of lithium batteries in their use of iron-phosphate for the cathode, rather than cobalt or nickel. They are said to have the following qualities:
- Safety and stability: LFP batteries are known for their safety and superior thermal stability. Compared to other types of lithium batteries, they are less likely to overheat or catch fire if malfunctioned or misused. This increased safety is due to the intrinsic stability of iron phosphate.
- Durability and life cycle: They also have a long service life and can maintain a high load capacity even after many charge and discharge cycles. They have a low self-discharge rate, which means they can hold their charge for long periods of time without use. Our products offer more than 6000 cycles and have a service life of about 15 years.
- Environmental performance: In comparison, LFP batteries have a potentially lower environmental impact. Iron is more abundant and less toxic than cobalt and nickel, and iron mining has a lower environmental impact. In addition, LFP batteries are easier to recycle than other types of lithium batteries.
Reducing our dependence on fossil fuels, improving air quality, managing e-waste more responsibly ; Lithium batteries have had a significant positive impact on the environment, playing a critical role in the transition to a cleaner and more sustainable society. Their increasing adoption in various areas, such as electric vehicles and renewable energy storage, has helped to significantly reduce greenhouse gas emissions from transportation and power generation.
Lithium battery recycling has also become more efficient, allowing valuable materials such as lithium, cobalt, and nickel to be recovered and reused in new batteries or other applications.
