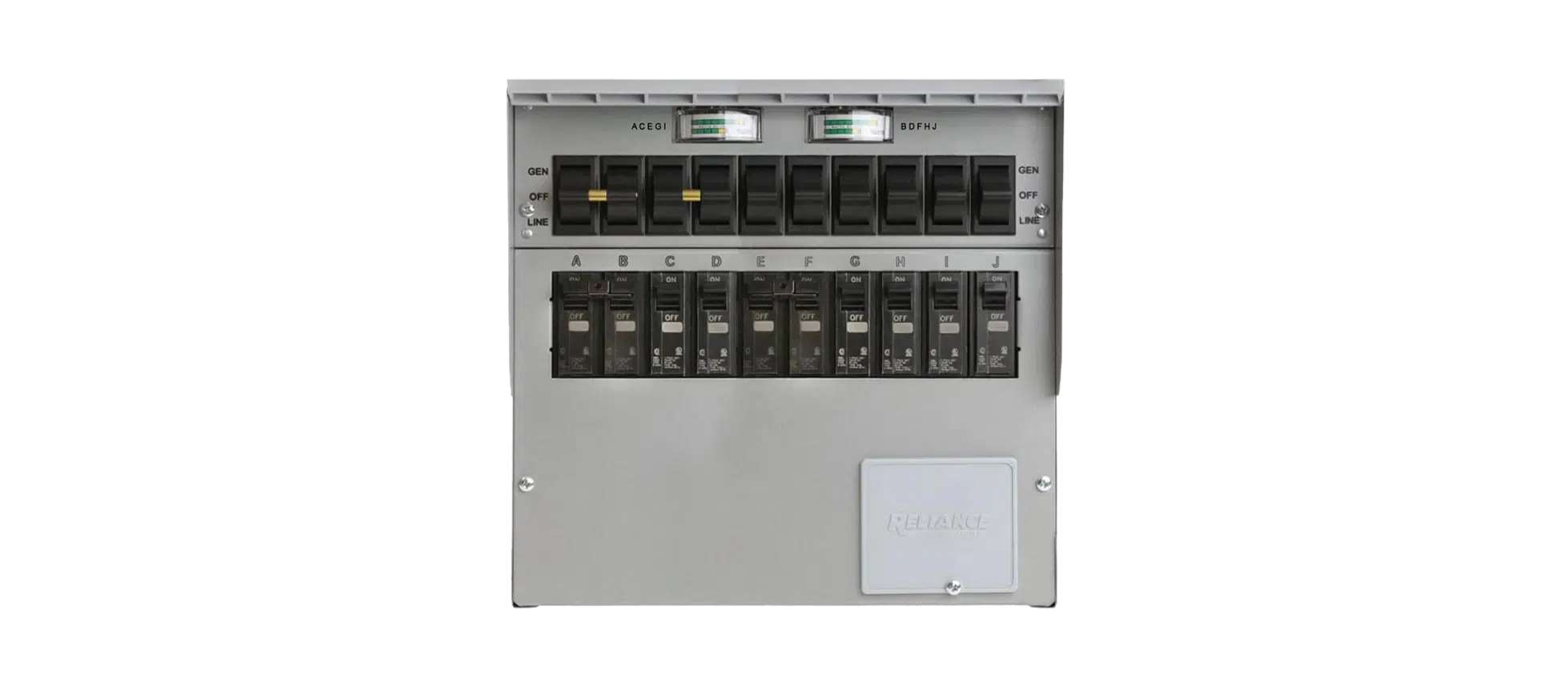

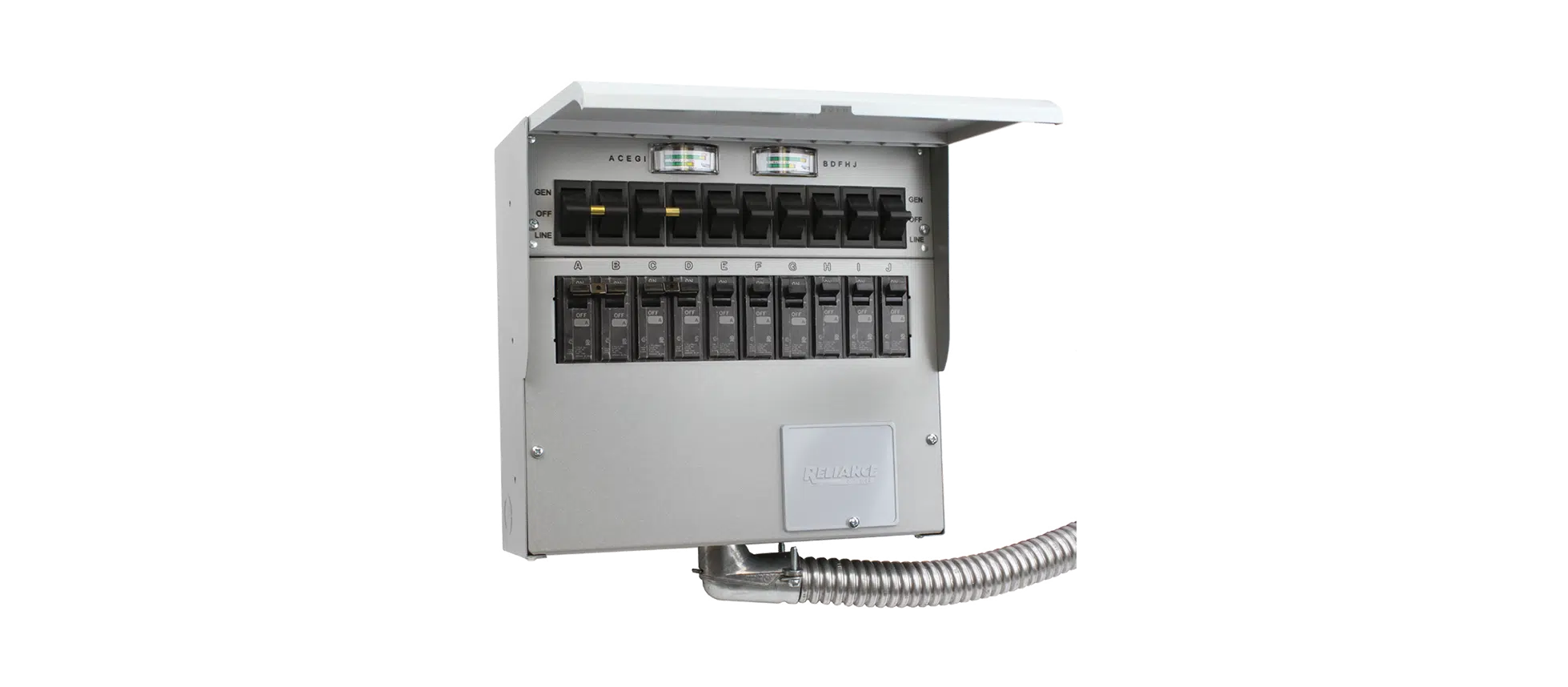

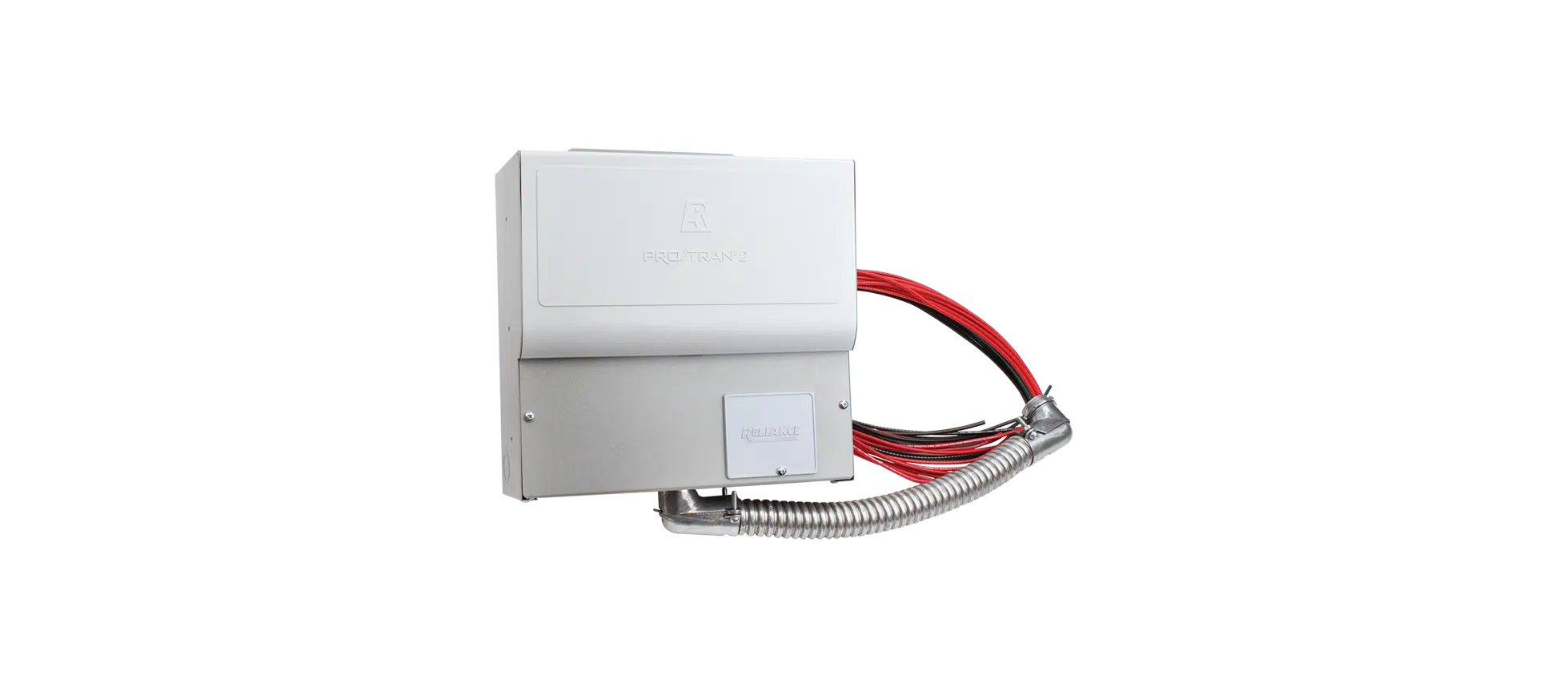

Reliance Controls – 50A Transfer Switch, 12 500W, 10 Circuits

The Reliance Controls Pro Tran® 2 line of Loadside™ transfer switches offers all the advantages that made the flagship Pro Tran® 1 model so successful for over 30 years. This new model incorporates several innovative features to meet the growing needs of consumers while providing a safe solution to supply backup power using a portable generator.

This model is compatible with any UL-listed 1″ interchangeable circuit breaker. It is easy to reconfigure in the field for multiple double-pole circuits if needed. It includes a swing-up protective cover for a polished finish. No additional feeder breakers are required. It is also equipped with a flexible conduit whip with fittings for easy installation.

The Reliance Controls 50A, 125-250V, 7500-Watt, 10-circuit transfer switch kit is easy to install and ensures efficient power distribution throughout your home.

The transfer switch allows your home’s electrical system to integrate the power provided by a portable generator to operate up to 10 single-pole circuits or 8 single-pole circuits and one 30A double-pole circuit. It enables you to power appliances, electrical devices, and lighting during a power outage. Pre-wired design for quick installation.

• Powers up to 10 circuits in the home during a power outage
  – 10 circuits : (1)2P 30A, (1)2P 20A, (6)1P 15A
• Easy to install and use
• This item is cULus1008 certified

KEY FEATURES

• Pre-wired for quick and easy installation
• Eliminates the dangers associated with back-feeding
• Includes a cover to protect toggle switches and circuit breakers
• Metal enclosure designed for indoor use
• Equipped with color-coded wattmeters

DETAILED INFORMATION

• Automatic or manual: Manual
• Certified: Yes
• Electric current rating (amperes): 50 amps
• Number of phases: 1
• Voltage (V): 120/240
• Dimensions W x H x D (in) : 11.75 X 11.25 X 4.75

RELATED DOCUMENTS

User manual and technical sheet
